For glass in glass production of LCD, LED or OLED’s  a manual encapsulation tool was developed in 2013.

The tool consists of:

  • Aluminum bottom frame with
    • Vacuum chamber
    • UV source
    • Attached fan system
    • Pneumatic locking for glass-glass pressure
    • Predrilled Quartz Glass 35mm thick inside the bottom frame
  • Aluminum top frame with
    • Camera for alignment
    • Pressurizing rubber
    • Motor for closing and opening top frame

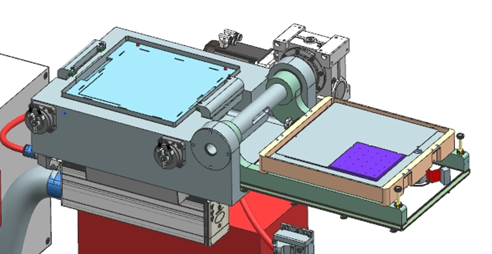

 Encapsulation cad design

  Bottom frame

 Open start position with two glass plates positioned

  Precise closing of the top frame

     Pressurized closing and UV curing

  Glass in glass encapsulated OLED
